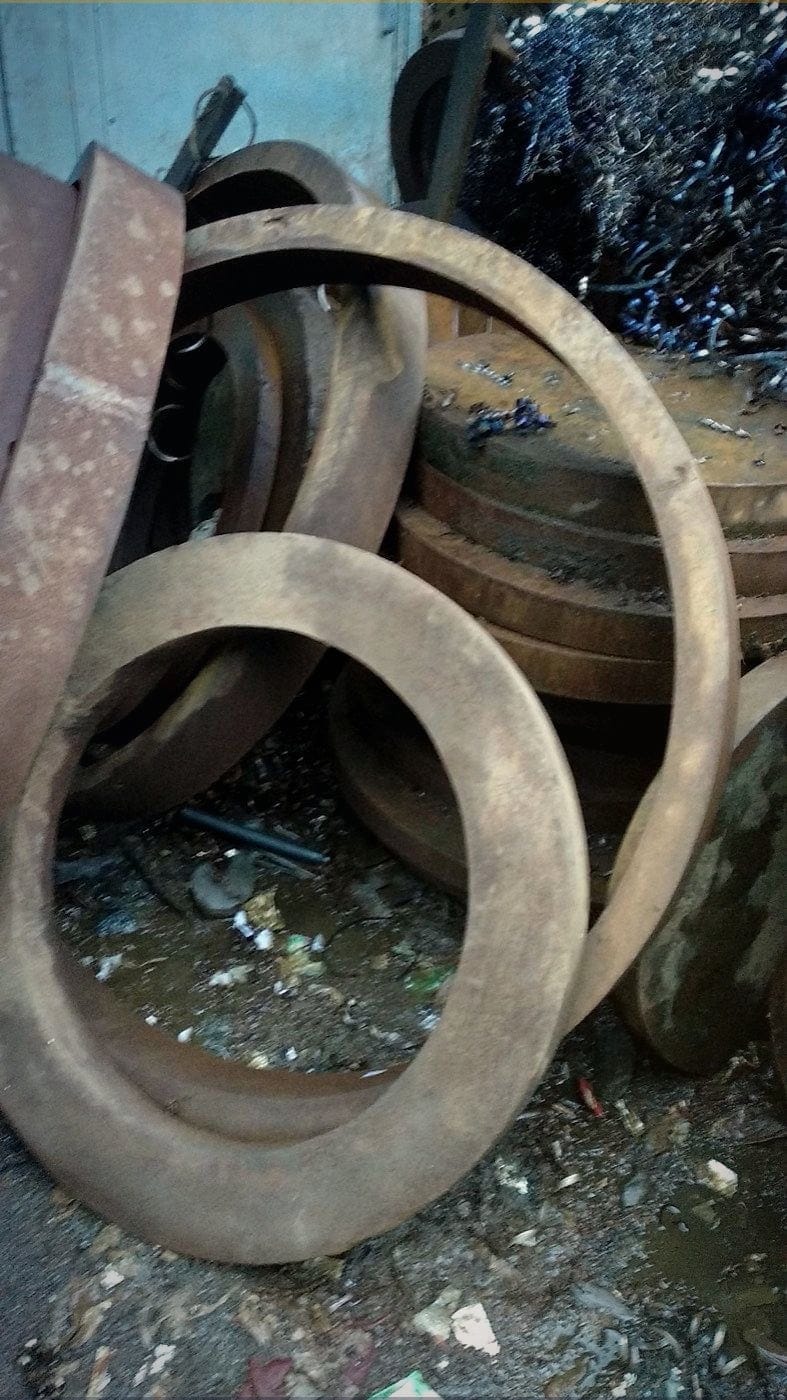

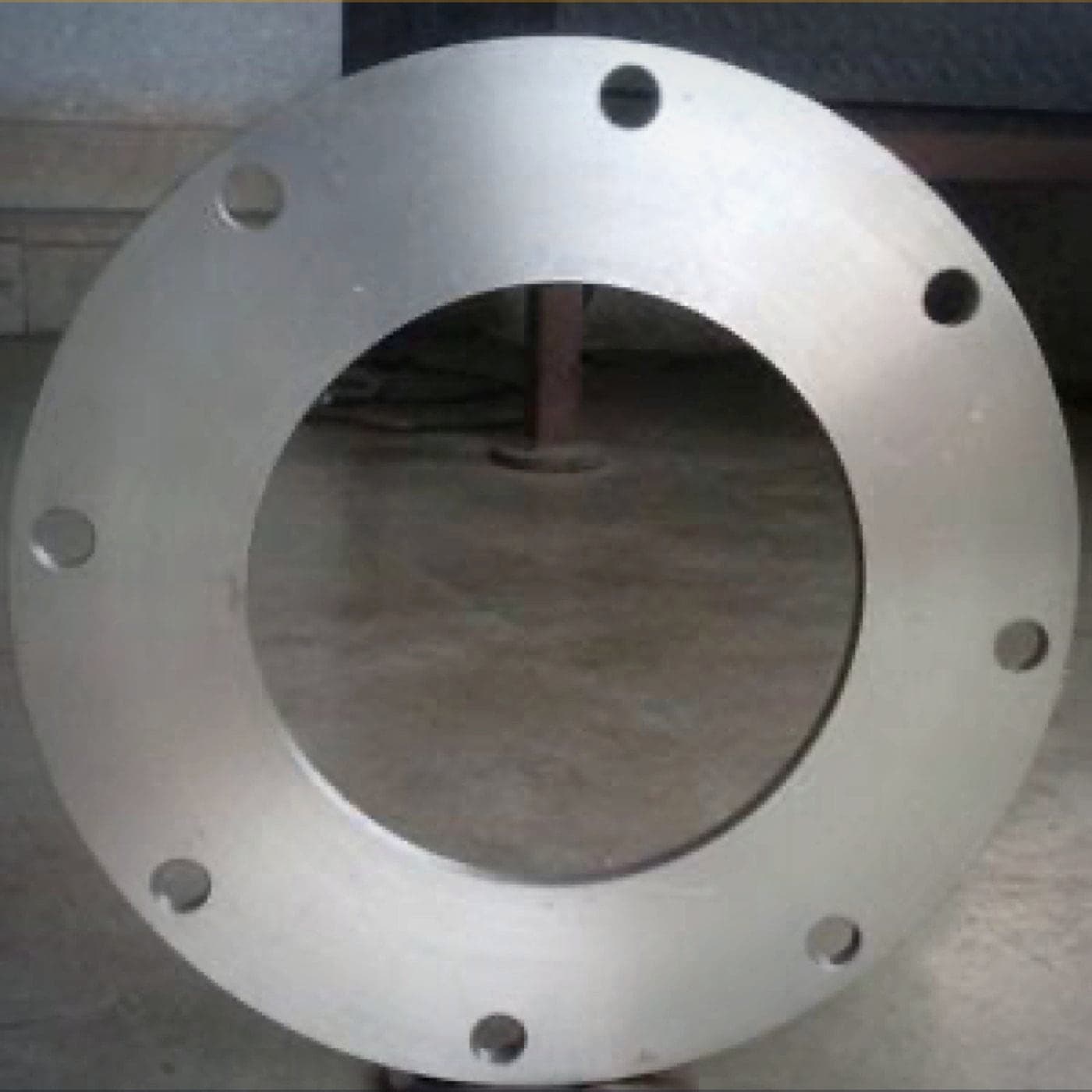

MS Plate Flange
Flat plate components prepared to the buyer's OD, bore, thickness and bolt-hole layout.
View detailsDrawing-based supply from Darukhana
MS Flange Manufacturer in Mumbai
Plate flanges, slip-on blanks, blind plates and custom rings made from buyer-approved dimensions. Send OD, bore, thickness, PCD, hole details and quantity for a practical quotation.
Workshop
Established 1995
Material
MS / IS 2062 when specified
Thickness
Up to 200mm job-wise
Input
Drawing, sample or dimensions
- MSME / UdyamBusiness registration
- ISOCertificate available
- ExportIndian registration
- GST27AAPPK1319M1ZD
Core range
Choose the closest drawing requirement
These four categories cover the main enquiries handled by Regal Profile. Special neck, groove or threaded work starts with the main page because machining and project details must be confirmed.
Slip-On Blank
Pipe-clearance bore and PCD pattern reviewed together before cutting or drilling.
View detailsBlind Plate
Solid closing plate with OD, thickness and bolt-hole details taken from the approved drawing.
View detailsCustom Drawing Work
Non-standard rings and connection plates produced from a clear drawing, sketch or approved sample.
View detailsVerified capability matrix
Compare the required input with the quoted workshop scope
This matrix covers the four flange-blank routes currently shown on this page. It separates cutting scope from machining, testing and pressure-duty requirements that need written confirmation.
Plate flange blank
- Buyer sends
- OD, bore, thickness, grade and quantity
- Workshop scope
- Flat MS plate profile prepared from the accepted dimensions
- Confirm separately
- Bolt holes, machining allowance, facing and inspection records
Slip-on blank
- Buyer sends
- Pipe OD or bore, OD, PCD, holes, thickness and quantity
- Workshop scope
- Bore and outside profile reviewed together for the mating requirement
- Confirm separately
- Final bore tolerance, raised face, welding preparation and machining
Blind plate
- Buyer sends
- OD, thickness, PCD, hole pattern, grade and application
- Workshop scope
- Solid plate blank with the agreed outside profile and hole scope
- Confirm separately
- Pressure duty, facing, testing, certification and surface finish
Custom ring or connection plate
- Buyer sends
- Approved drawing or measurable sample, critical dimensions and quantity
- Workshop scope
- Non-standard MS profile checked against the stated end use
- Confirm separately
- Threads, necks, grooves, final machining and third-party inspection
| Requirement | Buyer sends | Workshop scope | Confirm separately |
|---|---|---|---|
| Plate flange blank | OD, bore, thickness, grade and quantity | Flat MS plate profile prepared from the accepted dimensions | Bolt holes, machining allowance, facing and inspection records |
| Slip-on blank | Pipe OD or bore, OD, PCD, holes, thickness and quantity | Bore and outside profile reviewed together for the mating requirement | Final bore tolerance, raised face, welding preparation and machining |
| Blind plate | OD, thickness, PCD, hole pattern, grade and application | Solid plate blank with the agreed outside profile and hole scope | Pressure duty, facing, testing, certification and surface finish |
| Custom ring or connection plate | Approved drawing or measurable sample, critical dimensions and quantity | Non-standard MS profile checked against the stated end use | Threads, necks, grooves, final machining and third-party inspection |
Recent Workshop Projects

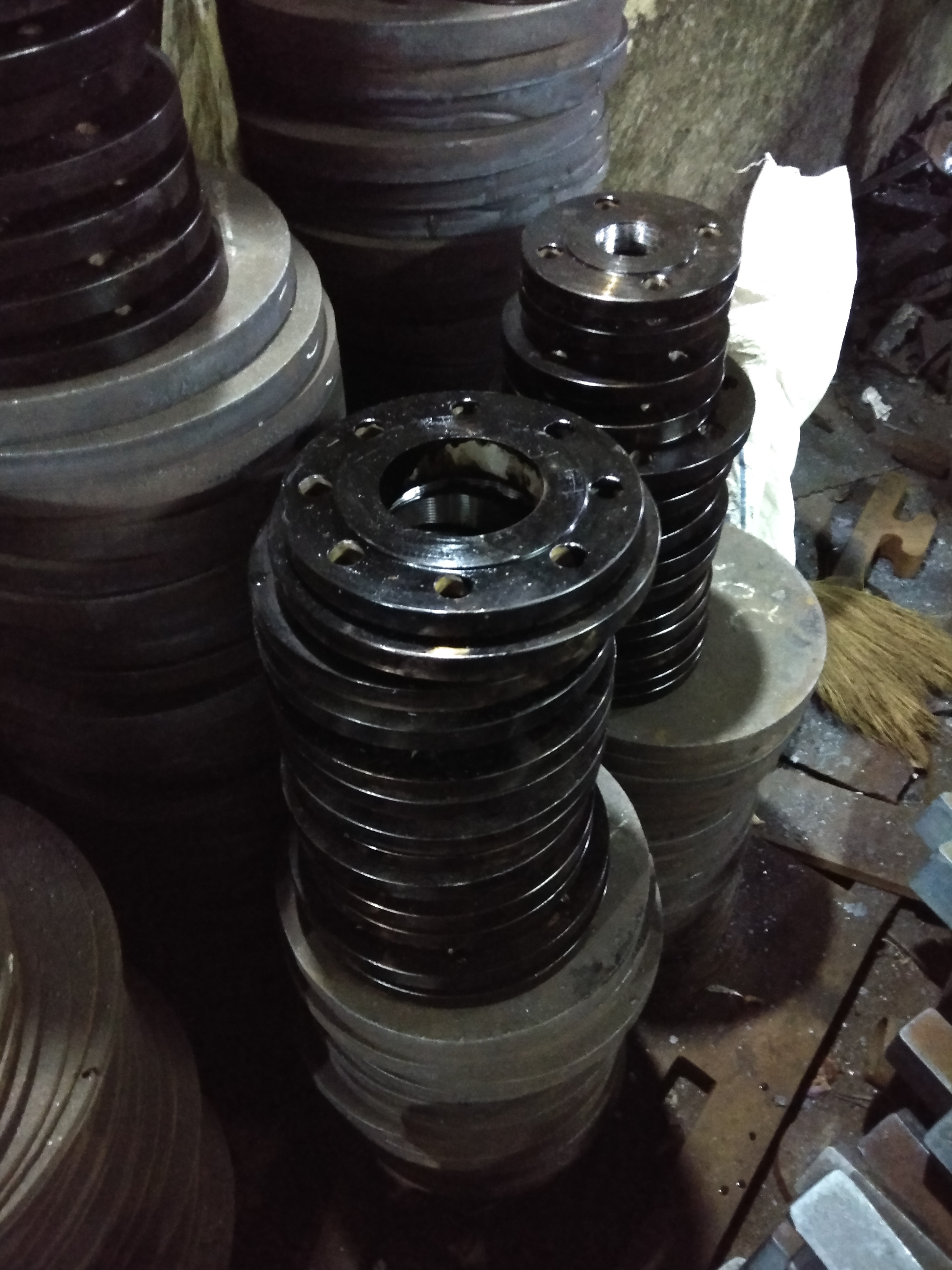

Finished blanks, PCD holes and workshop handling
Review plate profiles, bore openings and bolt-hole patterns before sending your own drawing or sample dimensions.

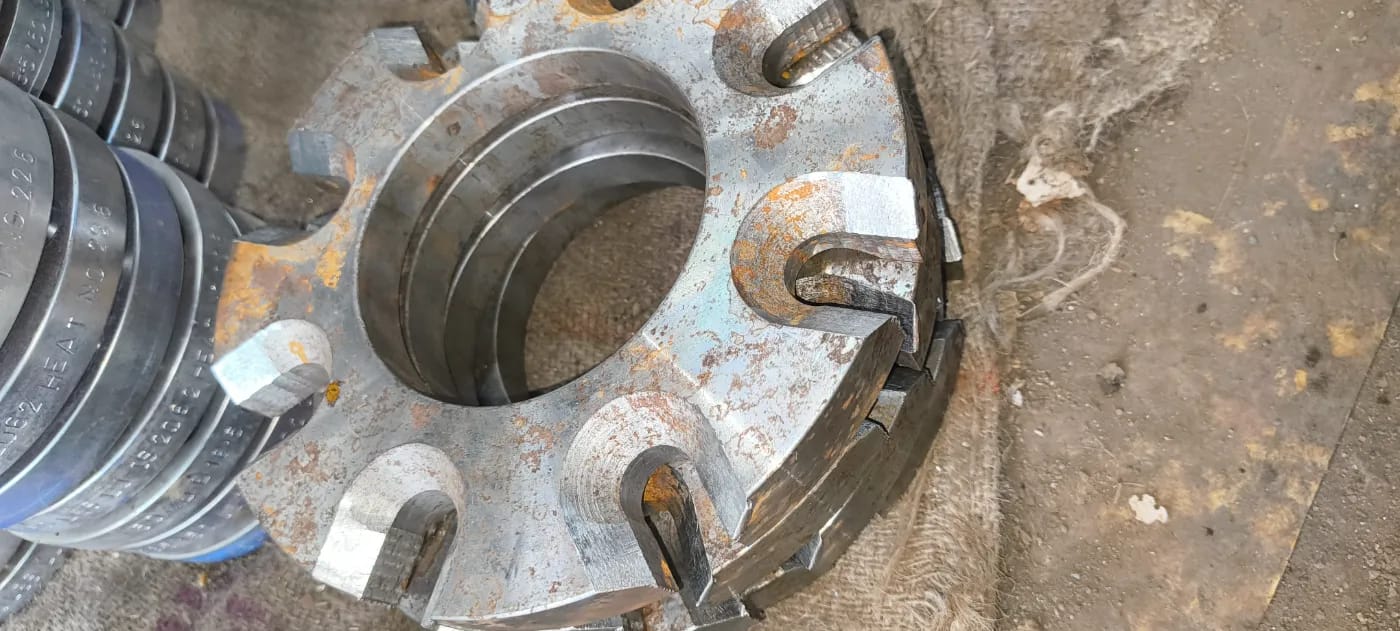

Custom MS Flange Blank - 35mmWork record
Custom MS Flange Blank - 35mm from Regal Profile's Darukhana, Mazgaon workshop. Thickness: 35mm. Material: IS 2062. Use: Chemical plant equipment. Send drawing and quantity for quotation.
- Thickness:
- 35mm
- Size:
- OD 36
- Material:
- IS 2062
- Application:
- Chemical plant equipment
- Workshop:
- Darukhana, Mazgaon, Mumbai

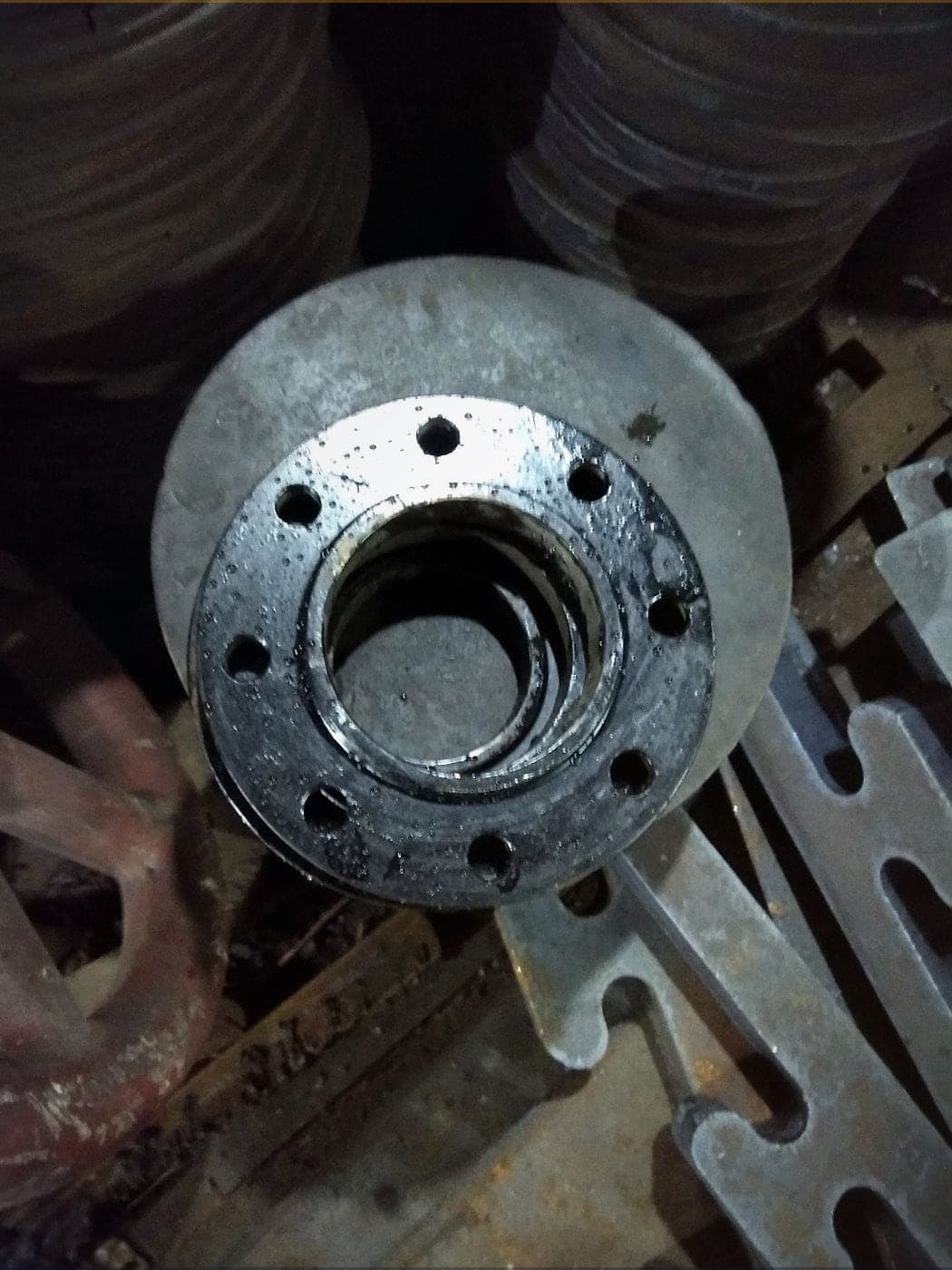

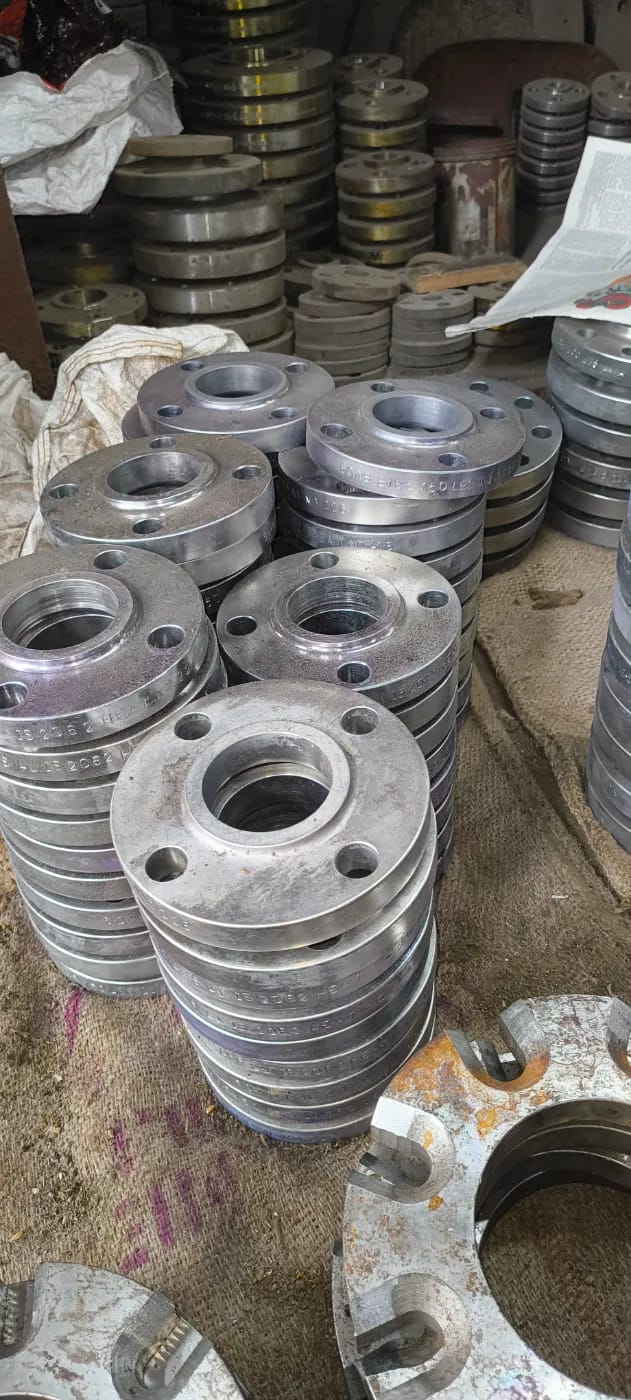

MS Slip-On Flange Blank - 65mmWork record
MS Slip-On Flange Blank - 65mm from Regal Profile's Darukhana, Mazgaon workshop. Thickness: 65mm. Material: IS 2062. Use: Machinery parts. Send drawing and quantity for quotation.
- Thickness:
- 65mm
- Size:
- OD 300
- Material:
- IS 2062
- Application:
- Machinery parts
- Workshop:
- Darukhana, Mazgaon, Mumbai

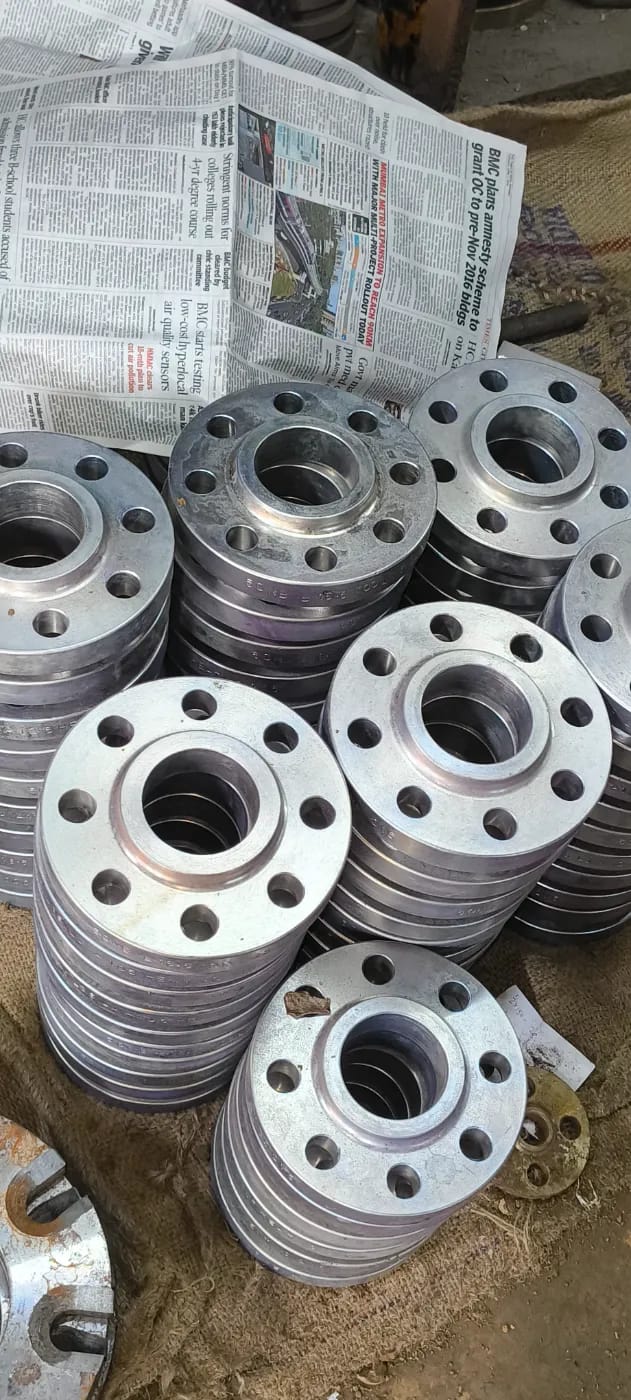

MS Slip-On Flange Blank - 30mmWork record
MS Slip-On Flange Blank - 30mm from Regal Profile's Darukhana, Mazgaon workshop. Thickness: 30mm. Material: IS 2062. Use: Machinery parts. Send drawing and quantity for quotation.
- Thickness:
- 30mm
- Size:
- OD 400
- Material:
- IS 2062
- Application:
- Machinery parts
- Workshop:
- Darukhana, Mazgaon, Mumbai

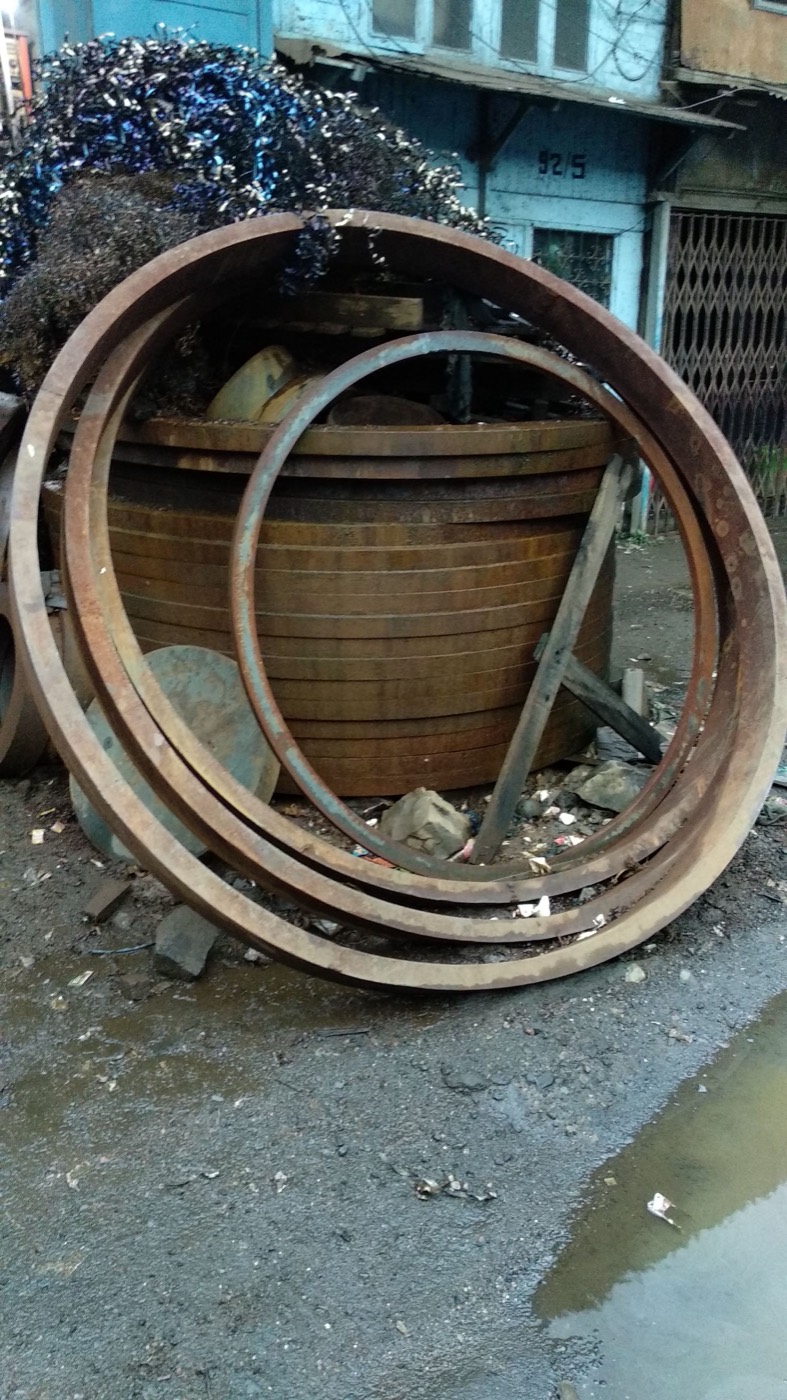

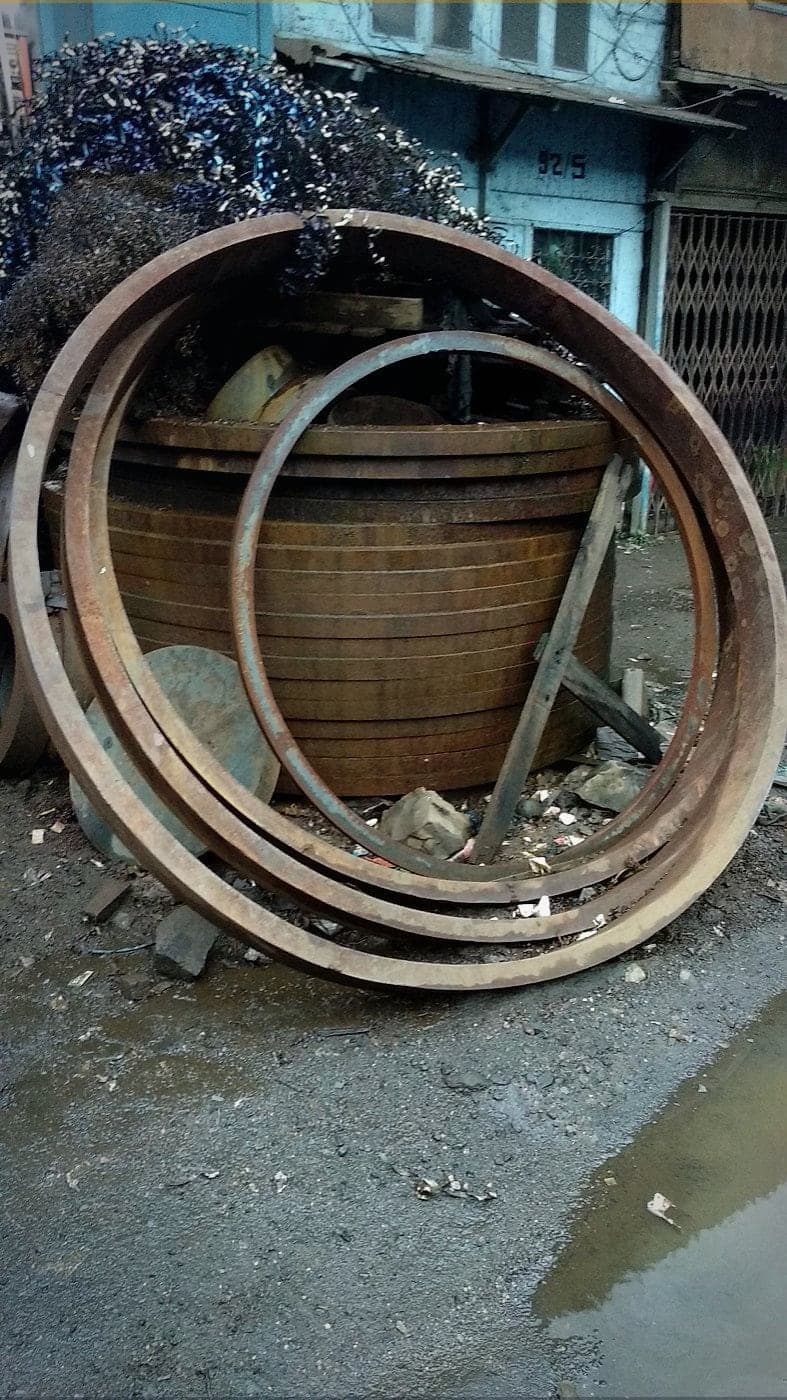

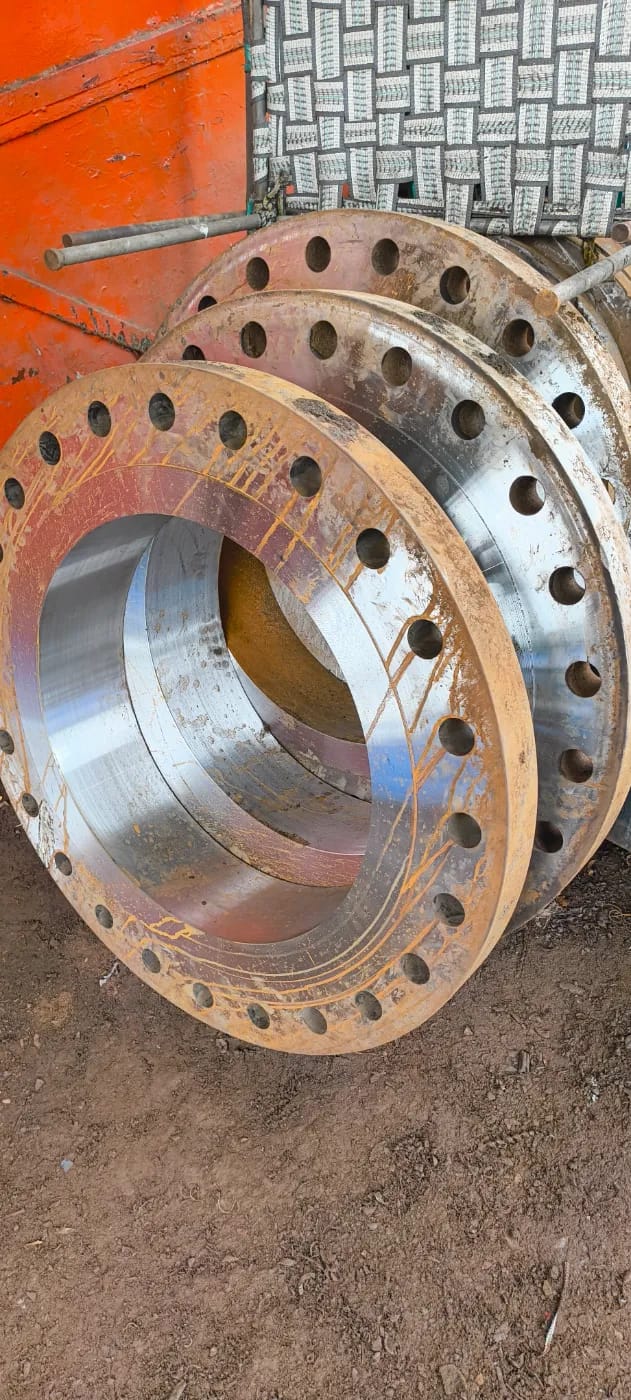

MS Plate Flange - 200mmWork record
MS Plate Flange - 200mm from Regal Profile's Darukhana, Mazgaon workshop. Thickness: 200mm. Material: IS 2062. Send drawing and quantity for quotation.
- Thickness:
- 200mm
- Size:
- OD 1060
- Material:
- IS 2062
- Application:
- Use in industrial area
- Workshop:
- Darukhana, Mazgaon, Mumbai

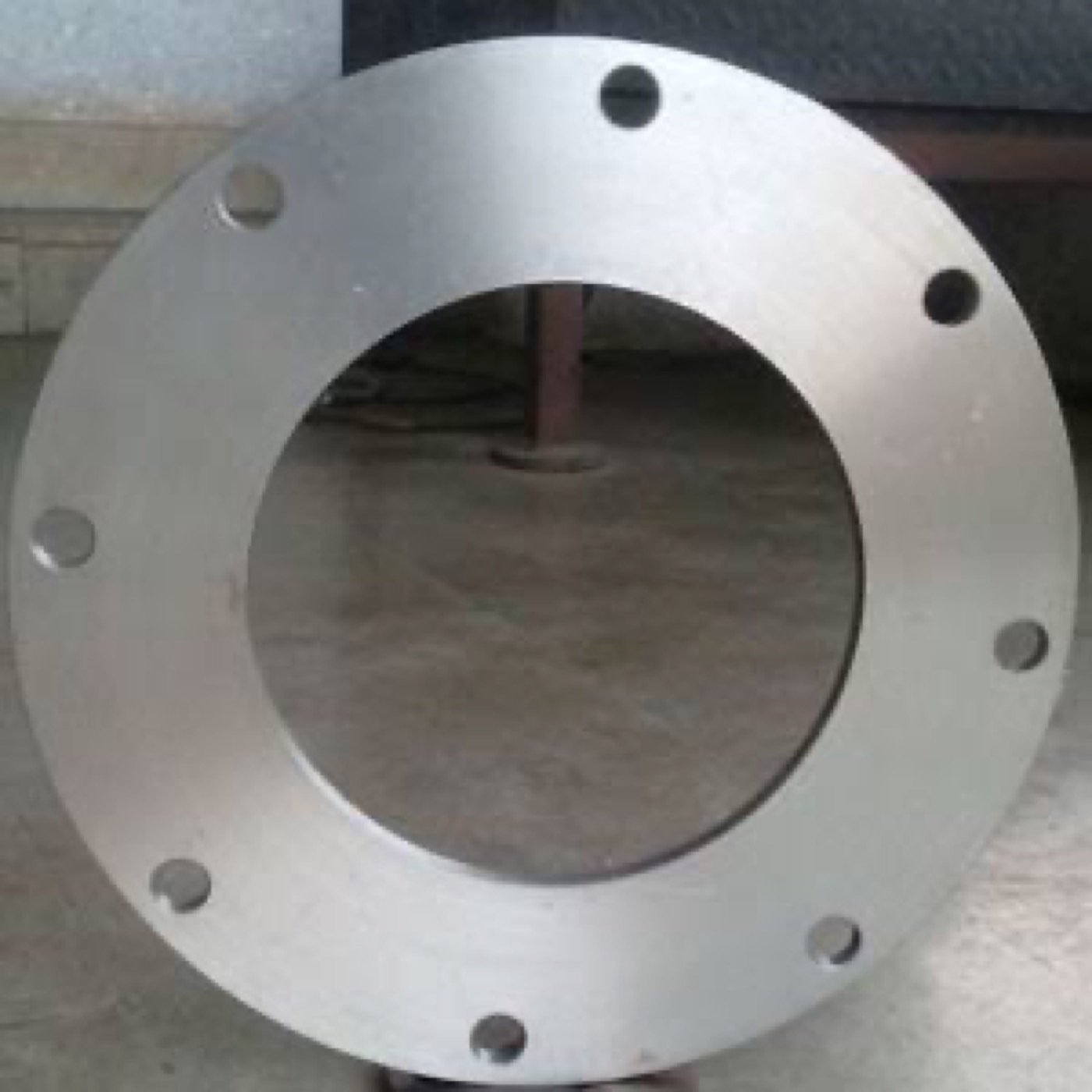

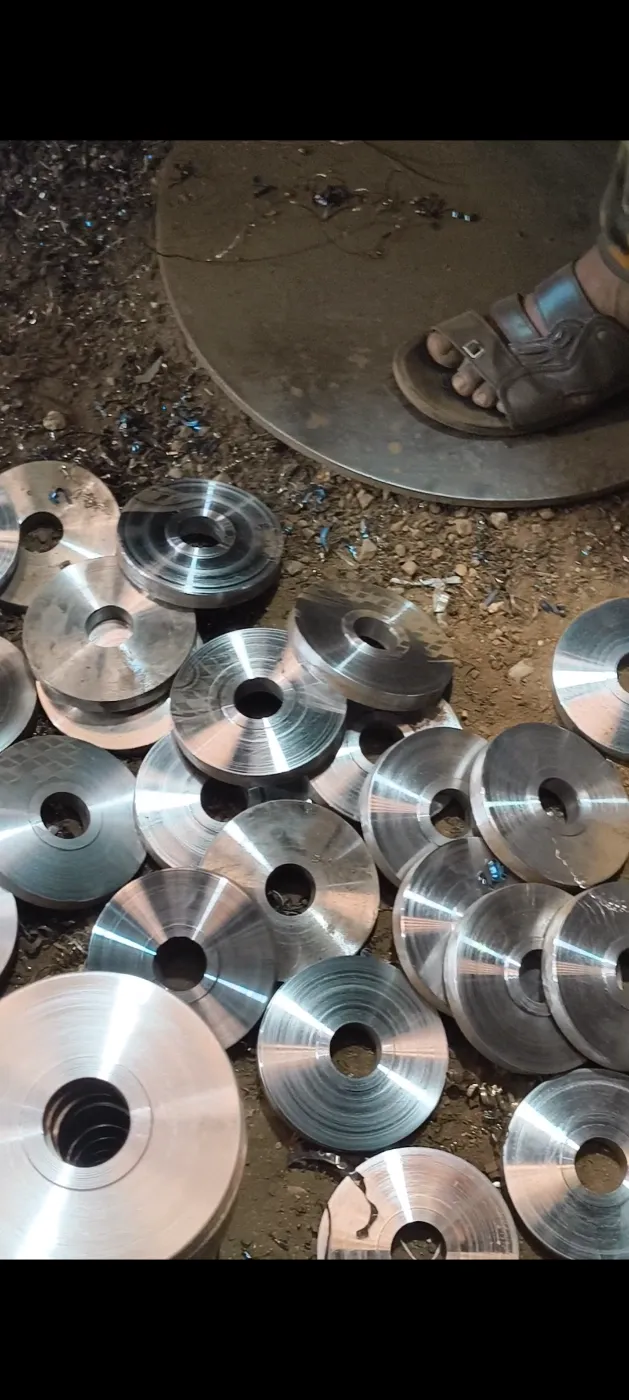

MS Plate Flange - 20mmWork record
MS Plate Flange - 20mm from Regal Profile's Darukhana, Mazgaon workshop. Thickness: 20mm. Size: OD 120. Material: IS 2062. Use: Flange manufacturing. Send drawing and quantity for quotation.
- Thickness:
- 20mm
- Size:
- OD 120
- Material:
- IS 2062
- Application:
- Flange manufacturing
- Workshop:
- Darukhana, Mazgaon, Mumbai

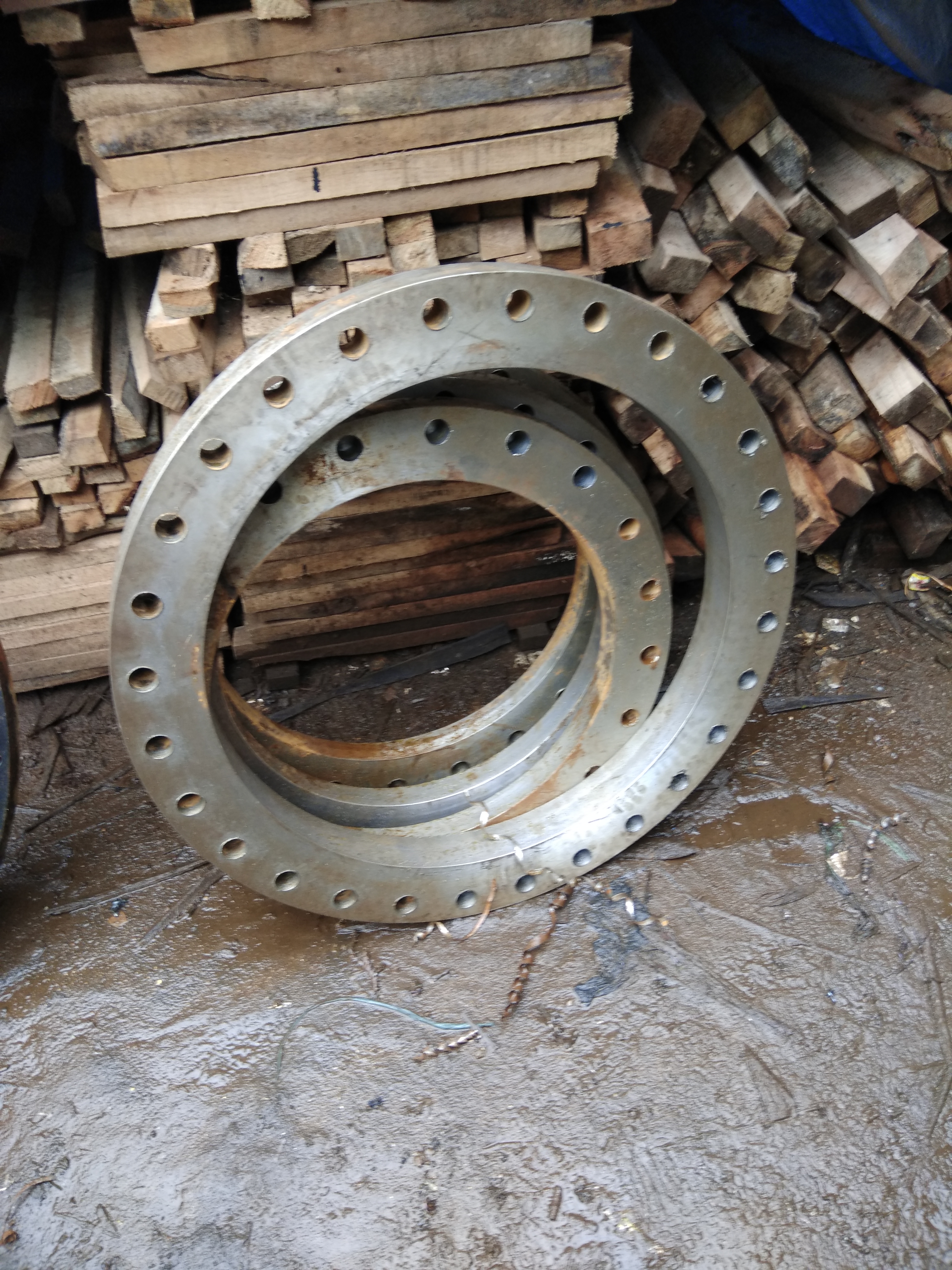

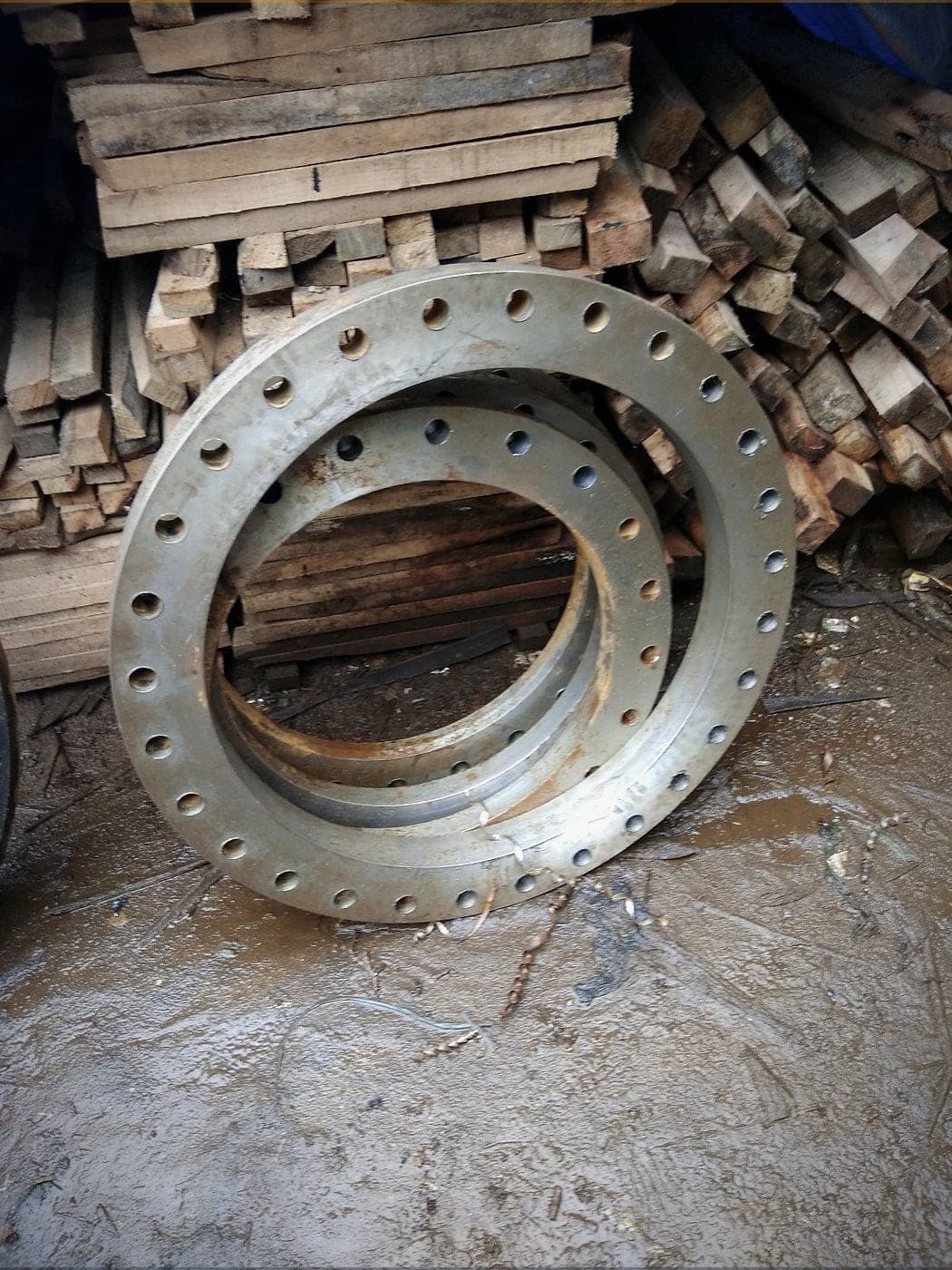

MS Plate Flange Workshop View 1Photo
MS Plate Flange Workshop View 1 from Regal Profile's Darukhana, Mazgaon workshop. Material: mild steel. Send drawing and quantity for quotation.
- Workshop:
- Darukhana, Mazgaon, Mumbai

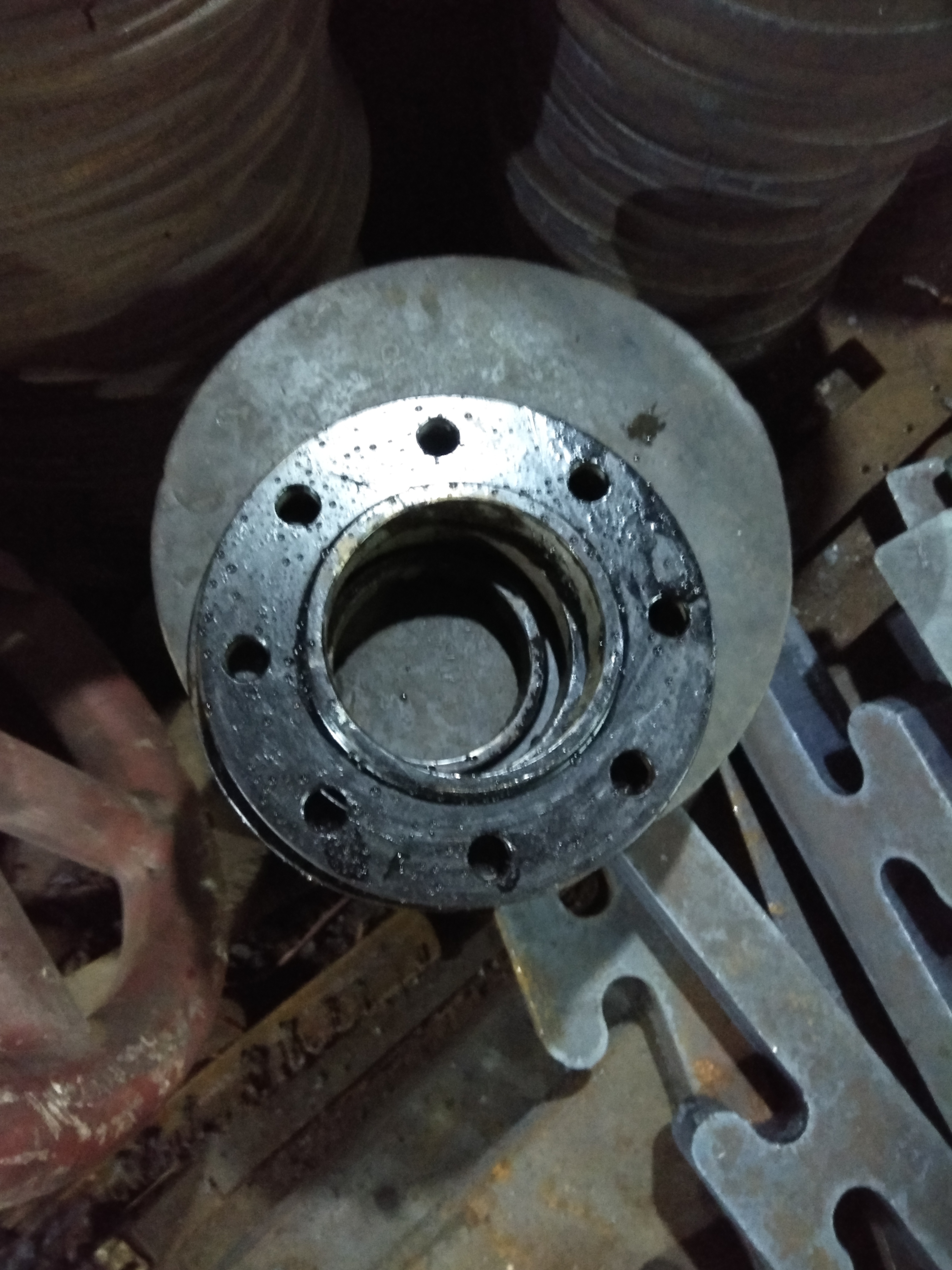

MS Plate Flange Workshop View 2Photo
MS Plate Flange Workshop View 2 from Regal Profile's Darukhana, Mazgaon workshop. Material: mild steel. Send drawing and quantity for quotation.
- Workshop:
- Darukhana, Mazgaon, Mumbai

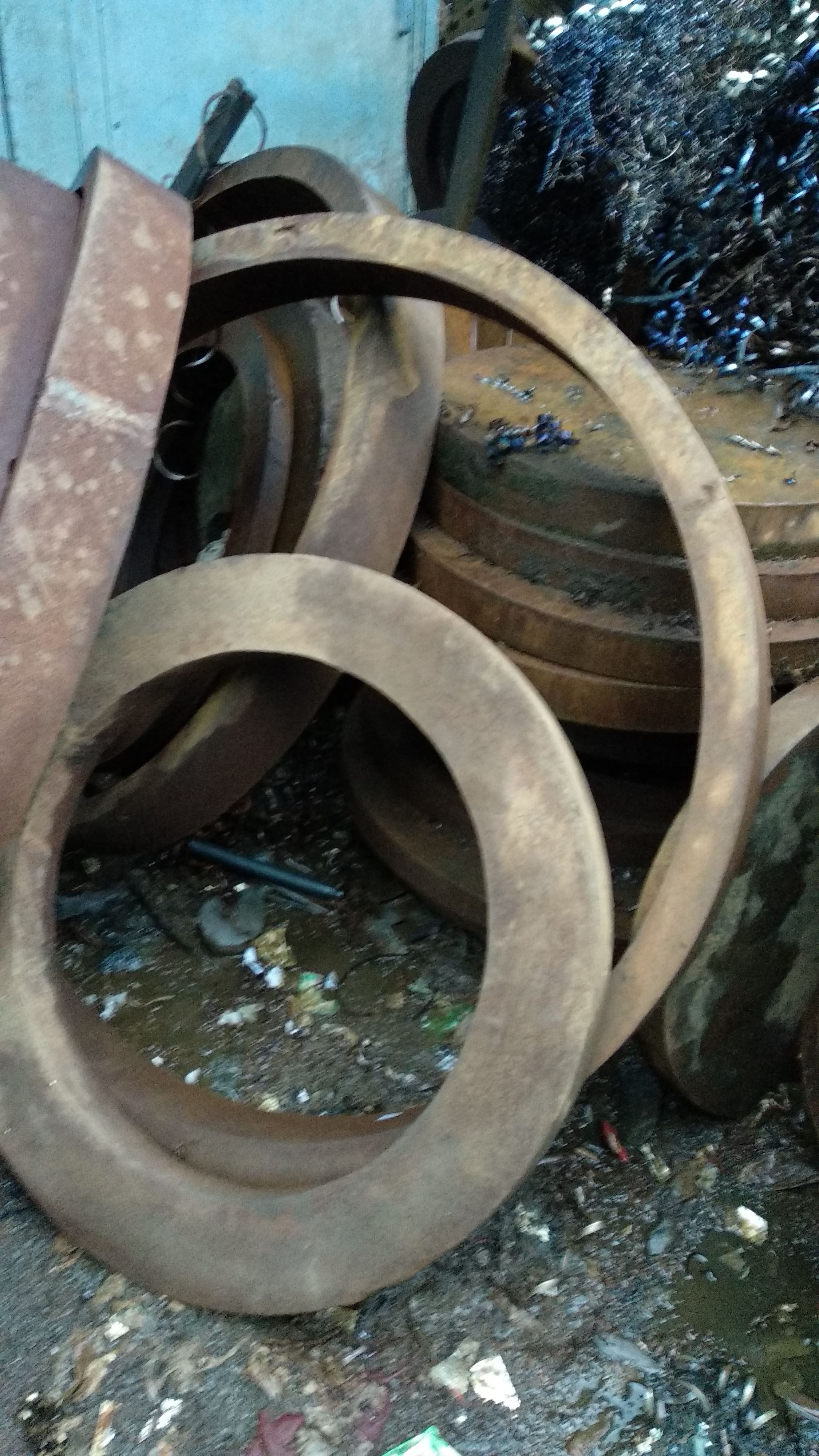

MS Plate Flange Workshop View 3Photo
MS Plate Flange Workshop View 3 from Regal Profile's Darukhana, Mazgaon workshop. Material: mild steel. Send drawing and quantity for quotation.
- Workshop:
- Darukhana, Mazgaon, Mumbai

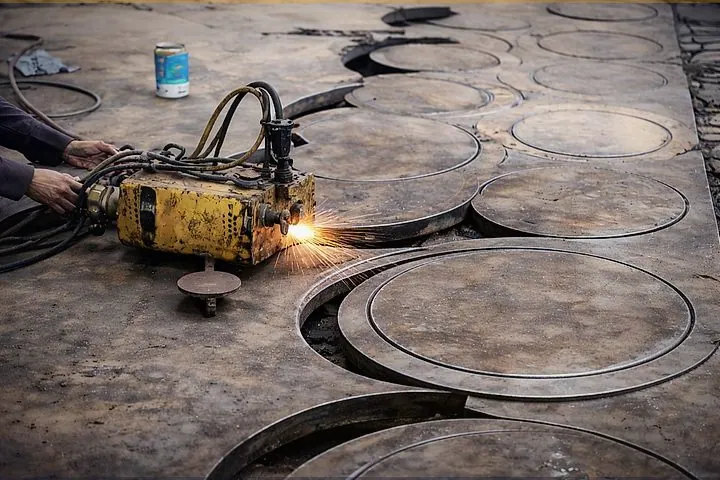

Cutting, stock and workshop videos
Verified Workshop Scope
What Regal Profile can confirm for MS Plate Flanges and Flange Blanks
Buyers should compare a supplier by the drawing details it checks, the work evidence it can show and the scope written into the quotation. Regal Profile has operated from Darukhana since 1995.
Document scope
A plate blank is not automatically a pressure-rated finished flange. Standards, machining, testing, MTC, NDT and third-party inspection must be confirmed in writing.
Workshop team
Operators and material-handling staff coordinate marking, cutting, checking and dispatch according to the accepted job scope.
Business identity
GSTIN 27AAPPK1319M1ZD, workshop address, phone and order details can be checked before payment or material dispatch.
Capacity
MS plate flanges, slip-on blanks, blind plates and custom rings up to 200mm job-wise from buyer-approved dimensions.
Machine and process
Rough profile cutting, bore, PCD holes and machining allowance are separated clearly before pricing.
Inspection points
OD, bore, thickness, PCD, hole count, hole diameter, orientation and quantity are treated as one fitment set.
Order input
Send flange type, OD, bore, thickness, PCD, holes, face or groove note, quantity and approved drawing.
Quotation details
Send dimensions that control fitment
A product name is not enough for production. Bore, PCD, holes and machining allowance must be read together so the blank matches the next operation or equipment connection.
| Type and application | Plate, slip-on, blind, ring or custom connection part; mention pipe, pump, valve, tank or fabrication use. |
|---|---|
| OD and bore | Share final dimensions or clearly mark any extra machining allowance. |
| Thickness | Mention finished requirement and whether a rough blank is acceptable. |
| PCD and holes | Provide pitch circle diameter, hole count, hole diameter, slots and orientation. |
| Material | State mild steel grade, IS 2062 requirement or material certificate need before quotation. |
| Quantity and delivery | Share number of pieces, project schedule and pickup or delivery location. |
Flange Drawing RFQ
Upload OD, bore, PCD and hole details
Share the approved drawing or dimension sheet with flange type, material grade, thickness and quantity. The private record keeps the buyer requirement connected to one workshop reference.
- Plate flange, slip-on blank, blind plate or custom ring
- OD, ID/bore, PCD, hole count and machining allowance
- Cutting scope separated from machining and testing
Material planning tool
MS flange blank weight calculator
Estimate the theoretical weight of a flat MS ring or blind plate before sending the approved drawing for quotation.
Theoretical flat-blank estimate
- Before hole deduction
- 10.4 kg
- Bolt-hole deduction
- 0.4 kg
- Approx. per piece
- 10 kg
- 4 piece total
- 40.02 kg
Uses 7,850 kg/m3 density for theoretical mild-steel weight. This flat-plate estimate excludes hub, raised face, groove, chamfer, machining loss, mill tolerance and actual density variation. It is not a pressure-design or certification calculation.
Send Estimate With DrawingStandards and scope
Use the approved drawing as the control document
| NB / DN / NPS | Share the nominal pipe size and actual bore or pipe OD from the approved drawing; one label alone is not enough for production. |
|---|---|
| E Table / IS reference | Mention the exact table or IS 1538 drawing reference, nominal bore and mating-flange details supplied by your project team. |
| PN / ASME Class | State the complete standard, pressure designation, material and face type. Regal Profile does not infer pressure duty from OD and thickness. |
| FF / RF / RTJ | Confirm flat face, raised face or RTJ groove and whether the quote is for a rough blank or finished machining. |
| Inspection documents | State dimensional report, MTC, NDT or third-party inspection requirements before price and delivery are finalized. |
Inspection flow
Checks before material leaves the workshop
| Before cutting | Drawing revision, material, thickness, OD, bore and machining allowance are checked together. |
|---|---|
| Hole pattern | PCD, hole count, hole diameter and orientation are reviewed as one fitment set. |
| After cutting | Outer profile, center opening and visible cut condition are checked before the next operation. |
| Before dispatch | Quantity, identification note, pickup contact and delivery destination are reconfirmed. |
Supply boundary
Know what the accepted quote includes
This distinction prevents a rough plate blank from being mistaken for a fully machined or tested pipeline component.
| Profile-cut flange blank | OD and bore cut from MS plate with the agreed machining allowance. |
|---|---|
| Blank with bolt holes | PCD, hole count, hole diameter, slots and orientation included only when confirmed on the drawing. |
| Machining-ready blank | Extra stock for boring, facing or turning can be kept when the allowance is stated before cutting. |
| Weld neck, socket weld or threaded type | These require a forged or machined route and a complete standard-based drawing. They are reviewed separately and are not assumed from a plate-blank enquiry. |
| Raised face or RTJ finish | Facing, raised-face dimensions and ring-joint grooves are secondary machining requirements that must be written into the accepted scope. |
| Finished pressure component | Machining, facing, groove, testing, certification and pressure duty are separate requirements and must appear in the accepted quotation. |
Important: a rough MS plate blank is not automatically a finished, pressure-rated component. Final machining, facing, groove, testing, certification and project approval must be stated and confirmed separately.
Project handover
Agree the records needed with the material
Documentation is planned with the quotation, not added after the parts are ready. Tell the workshop what your project, inspection team or machining vendor must receive.
| Drawing control | The quotation and workshop job record should show the accepted drawing number, revision and part description. |
|---|---|
| Material identity | Grade, plate thickness and any heat or batch identification are recorded only to the level agreed before cutting. |
| Dimensional record | OD, bore, thickness, PCD and hole details can be listed for inspection when the buyer requests a report in the enquiry. |
| Part marking | Part number, size or project identification can be marked or bundled when the required method is confirmed before production. |
| MTC, NDT and third-party inspection | Required documents, witness points and agency scope must be agreed before material purchase and scheduling. |
| Dispatch set | Quantity, included documents, GST invoice, pickup contact and transport destination are reconciled before release. |
Outstation orders
MS flange blanks and plate flanges dispatched from Mumbai
Regal Profile's workshop is in Darukhana, Mumbai; these are dispatch routes, not branch-office locations. Drawing-approved plate flanges, slip-on blanks, blind plates and custom rings can be bundled with identification and documents agreed in the quotation.Freight and delivery timing are confirmed after drawing, weight, packing and destination PIN code are checked.
Check industrial dispatch areasPune and Maharashtra
Bhosari, Chakan, Ranjangaon, Talegaon and other MIDC routes
Hyderabad and Telangana
Jeedimetla, Patancheru, Nacharam, Cherlapally and nearby industrial belts
Bengaluru and Karnataka
Peenya, Bommasandra, Jigani, Bidadi and major manufacturing clusters
Applications
Where drawing-based flange blanks are used
Pipe fabrication
Connection plates and rough blanks for piping assemblies.
Pump and valve work
Drawing-led bore and bolt-hole patterns for equipment connections.
Plant maintenance
Replacement parts prepared from an approved drawing or measured sample.
Tanks and utilities
Custom plate connections for water, process and fabrication requirements.
Machining vendors
Rough rings with agreed allowance for later boring, facing or groove work.
EPC and project buying
Batch supply planned from drawing revision, quantity, inspection and dispatch schedule.
Order process
A clearer route from enquiry to dispatch
Send complete details
Share drawing or sample information with OD, bore, thickness, PCD, holes and quantity.
Confirm the scope
The workshop separates rough cutting, drilling and machining requirements before pricing.
Approve quotation
Material, allowance, inspection, timing and dispatch terms are recorded before production.
Inspect and dispatch
Finished scope and quantity are checked, then pickup or transport is coordinated from Darukhana.
Buyer tools
Understand PCD, then send a complete drawing
PCD means pitch circle diameter: the circle passing through the centres of the bolt holes. Use these practical pages to check the terminology, price factors and dimensions needed for a custom part.
Buyer questions
Frequently asked questions
Which dimensions are required for a quotation?
Send type, OD, bore, thickness, PCD, hole count, hole diameter, quantity and delivery location. Add machining allowance or inspection notes where required.
Can you prepare parts from a sample or hand sketch?
A clear sample photo or sketch can be reviewed for an initial discussion, but production dimensions should be confirmed through an approved drawing or signed size list.
What thickness can Regal Profile handle?
Heavy mild steel plate work can be checked up to 200mm depending on OD, bore, shape, stock and the required cutting route.
Do you supply finished pressure-rated components?
Regal Profile primarily prepares drawing-based MS plate profiles and blanks. Pressure rating, final machining, facing, groove, testing and certification must be explicitly confirmed for each project.
Can PCD holes be included?
Yes, hole work can be reviewed when the PCD, hole count, diameter, slots and orientation are clearly shown on the drawing.
Can machining allowance be kept on OD and bore?
Yes. State the required allowance before quotation so the rough blank can be planned for later boring, facing or turning.
Are urgent replacement jobs accepted?
Urgent work is checked against plate availability, drawing clarity, thickness, quantity and the current workshop schedule before a delivery promise is made.
Where does Regal Profile supply from?
The workshop is in Darukhana, Mazgaon, Mumbai, with pickup and dispatch coordination for Mumbai, Thane, Navi Mumbai and nearby industrial areas.
Can MS flange blanks be supplied outside Mumbai?
Yes. Drawing-approved batches can be reviewed for dispatch to Pune and other Maharashtra MIDCs, Hyderabad and Telangana, Bengaluru and Karnataka, and other Indian project destinations. Freight and timing depend on weight, packing and PIN code.
Recent Work
Recent MS flange and flange blank work
Recent jobs with workshop photos, work dates and the available material or size details.
MS Flanges5
MS Flanges1
Since 1995
Get the drawing checked before ordering material
- Clear scope confirmation
- Darukhana workshop coordination
GSTIN: 27AAPPK1319M1ZD | 177/10, 178/10, Gurukrupa Hutments, Reti Bunder Road, Darukhana, Mazgaon, Mumbai - 400010, Maharashtra, India
